Aibang Machinery Technology Co., Ltd. is a Chinese manufacturer of continuous rotary extrusion lines for copper and aluminum products.

key word:

Aibang Machinery | Copper extruder series

Category:

Copper row, profile, bar production line series

Service hotline：

+8613506124377

Feedback
Contact us

Description

A



Products: all kinds of pure copper, aluminum, silver-copper flat wire, round wire and special-shaped copper and aluminum row, aluminum tube.

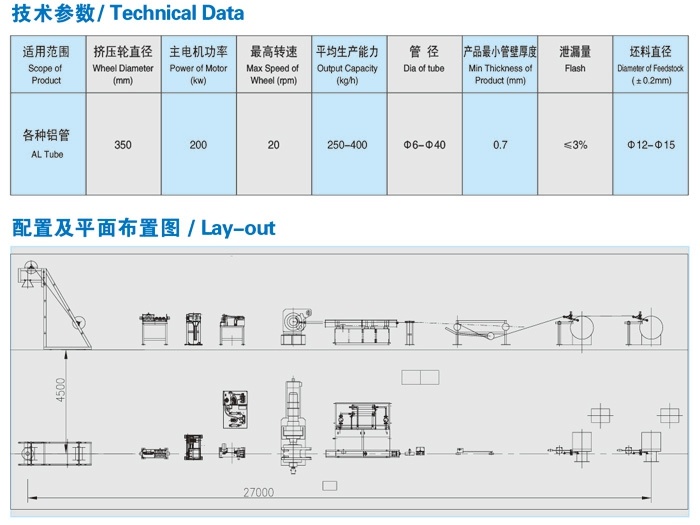

I. Technical parameters

(1) Continuous squeeze host parameters:

Host model:

LJ350　

Rated speed:

20rpm　

Main motor power:

200kw

(2) Production line parameters

1. Copper rod blank:

diameter:

Ф15 mm　

Diameter tolerance:

±0.2mm

2. Busbar products:

cross-sectional area range:

100~700 mm2

Maximum width:

80mm

3. Average output:

250~400 kg/h　

4. The amount of overflow:

≤5%

Three. The complete production line unit includes the following equipment:

Copper rod material pay-off rack

一台　

Copper rod feeding straightening machine

一台　

Copper rod cutting machine

One

Copper continuous extrusion machine

一台　

Cooling and anti-oxidation system

One

meter counting device

一台　

Gantry type take-up machine

A set of 　

Electronic control (with touch screen) system

A set of 　

Hydraulic and lubrication system

A set of 　



A

Aibang Machinery Technology Co., Ltd. is a Chinese manufacturer of continuous rotary extrusion lines for copper and aluminum products. These production lines are available with different specifications and can produce yields such as the aluminum tube, copper flat wire, soft aluminum section wire, and the copper busbar and profile. Also available are continuous rotary extrusion equipment for producing aluminum clad steel wires.
