LJ400 aluminum row production line
Aibang Machinery Technology Co., Ltd. is a Chinese manufacturer of continuous rotary extrusion lines for copper and aluminum products.
key word:
Aibang Machinery | Copper extruder series
Description
|
Product: Aluminum row and high-precision aluminum strip continuous extrusion production line
|
|
|

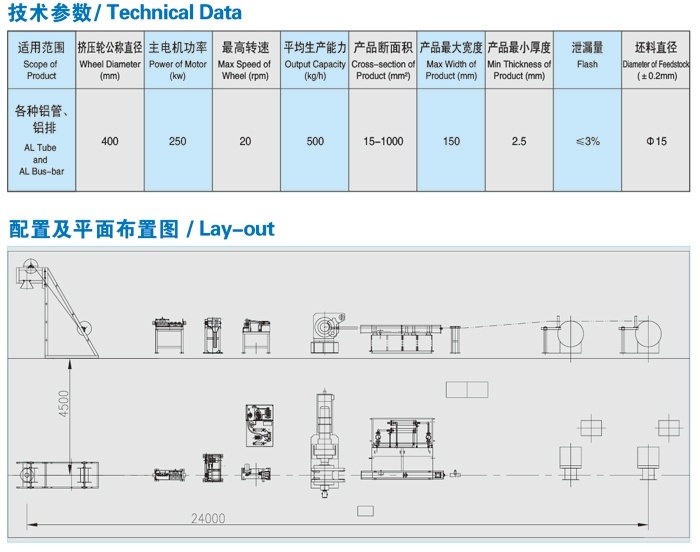

I. Technical parameters
|
|
|
(1) Continuous squeeze host parameters:
|
|
|
Host model:
|
LJ400
|
|
Nominal diameter of extrusion wheel:
|
400mm
|
|
Rated speed:
|
20rpm
|
|
Main motor power:
|
250kw
|
|
(2) Production line parameters
|
|
|
1. Aluminum rod blank: single rod 15mm or double rod 12mm oilless rod
|
|
|
Diameter:
|
Ф12-15mm
|
|
Diameter tolerance:
|
±0.5mm
|
|
Yield strength:
|
<=90Mpa
|
|
2. Busbar products: aluminum bars with a width of 20-150mm
|
|
|
3. Average output:
|
300- 800kg/h
|
|
4. Installed capacity:
|
380V, 3-phase, 315KVA
|
|
5. Overfill amount:
|
1-3%
|
|
(3) Workshop size:
|
|
|
Not less than:
|
30M in length, 8M in width, 8M in height
|
|
Cooling water:
|
Cooling tower 80 m³/h
|
|
Compressed air:
|
0.7 Mpa, 2 m³/min
|
|
(4) Operators:
|
2 names
|
|
Three. The complete production line unit includes the following equipment:
|
|
|
Bar material pay-off stand
|
一台
|
|
Pole feeding straightening machine
|
一台
|
|
Material scrubbing and cleaning system
|
A set of
|
|
Pole cutting machine
|
一台
|
|
Continuous extrusion machine
|
一台
|
|
Cooling system
|
one
|
|
meter counting device
|
一台
|
|
Fixed length sawing (including 6m material table)
|
One set
|
|
Special take-up machine
|
One set
|
|
Electronic control (with touch screen) system
|
A set of
|
|
Hydraulic and lubrication system
|
A set of
|
Aibang Machinery Technology Co., Ltd. is a Chinese manufacturer of continuous rotary extrusion lines for copper and aluminum products. These production lines are available with different specifications and can produce yields such as the aluminum tube, copper flat wire, soft aluminum section wire, and the copper busbar and profile. Also available are continuous rotary extrusion equipment for producing aluminum clad steel wires.
